P2.98 500x500mm Smd Rgb LED Video Wall Display With Die Casting Cabinet

P2.98 500x500mm Smd Rgb LED Video Wall Display With Die Casting Cabinet
P2.98 500x500mm Smd Rgb LED Video Wall Display With Die Casting Cabinet P2.98 500x500mm Smd Rgb LED Video Wall Display With Die Casting Cabinet P2.98 500x500mm Smd Rgb LED Video Wall Display With Die Casting Cabinet P2.98 500x500mm Smd Rgb LED Video Wall Display With Die Casting Cabinet P2.98 500x500mm Smd Rgb LED Video Wall Display With Die Casting Cabinet
Basic Information
Place of Origin: Guangdong, China
Brand Name: Longrun
Model Number: P2.98
Minimum Order Quantity: >=1 Square Meters
Price: Negotiable
Packaging Details: 8 in 1 flight case
Supply Ability: 500 Square Meter/Square Meters per Month
Contact Now
LED Chip: Epistar Life Span: 100000hours
Certificate: CE ROHS Warranty: 2 Years
Application: Adervertising Usage: Indoor
Tube Chip Color: 1RGB Display Function: Animation, Graphics, Video
Pixels: 2.98 Screen Dimension: Customized
Port: Shenzhen
Highlight:

led video panel

,

led video display board

P2.98 500x500mm Smd Rgb LED Video Wall Display With Die Casting Cabinet



Product Description
1. P2.98 with SMD1515 LED and PWM IC has 7680Hz refresh rate, 16bit gray levels and excellent color consistency.
2. Magnet design allows front and rear maintenance, module can be disassembled and taken out though cabinet.
3. Carbon fiber material flat mask with bolt and screw cover design, ensures 140 degree viewing angle and avoid heated distortion problem.
4. LCD panel on cabinet back is optional, can show company information, screen temperature, humidity, system voltage, cumulative operation time etc.
5. Special cabinet bottom design insures good protection for mask and LED.
6. High-precision die casting aluminum material, seamless match, unique suit design.
7. Standard dimension module size: 250mm x250mm, cabinet size 500mm x 500mm.
8. Compatible models: indoor P2.98, P3.91, P4.81, P5.95 and outdoor PH3.91, PH4.81, PH5.95.



Technical parameter



Specification

 Indoor Outdoor
P2.98 P3.91 P4.81 P5.95 PH3.91 PH4.81 PH5.95
Pixel Pitch(mm) 2.98 3.91 4.81 5.95 3.9 4.8 5.95
LED Type SMD1515 SMD2121 SMD2121 SMD3528 SMD1921 SMD2727 SMD2727
Module Size(mm) 250*250
Scanning Mode 1/14 1/16 1/13 1/14 1/8 1/13 1/7
Optimum Viewing Angle

H:140℃

V:120℃
Brightness(cd/㎡) 600-1800 600-1500 600-1200 600-1800 1000-6500 1000-5500 1000-6500
Grey Scale(bit) 16
Refresh Rate(HZ) >1920
Power Consumption 200/60 160/40 160/40 160/40 200/60 200/60 200/60
Cabinet Resolution(PX) 168*168 128*128 104*104 84*84 128*128 104*104 84*84
Cabinet Size(mm) 500*500*85
Cabinet Weight(kgs) 7.3

7.85

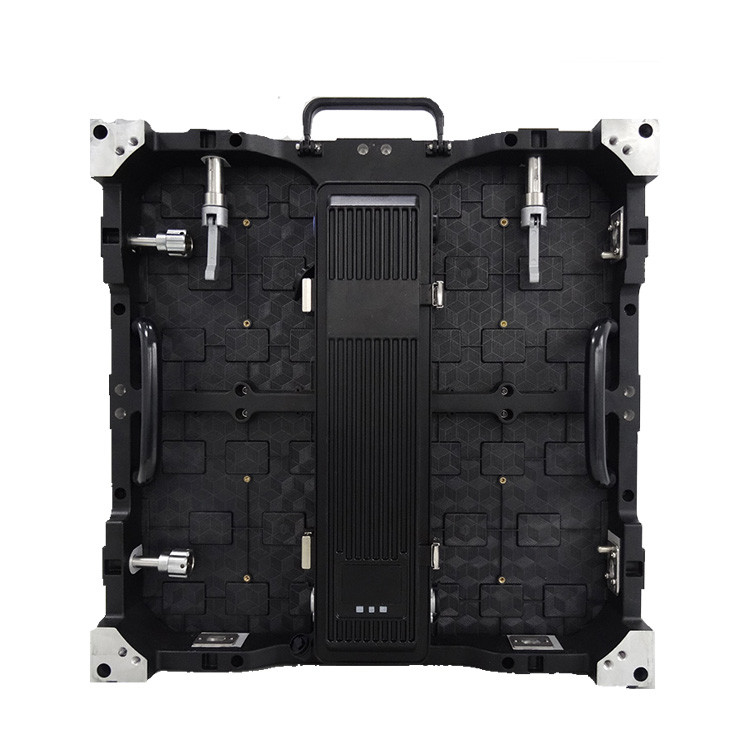

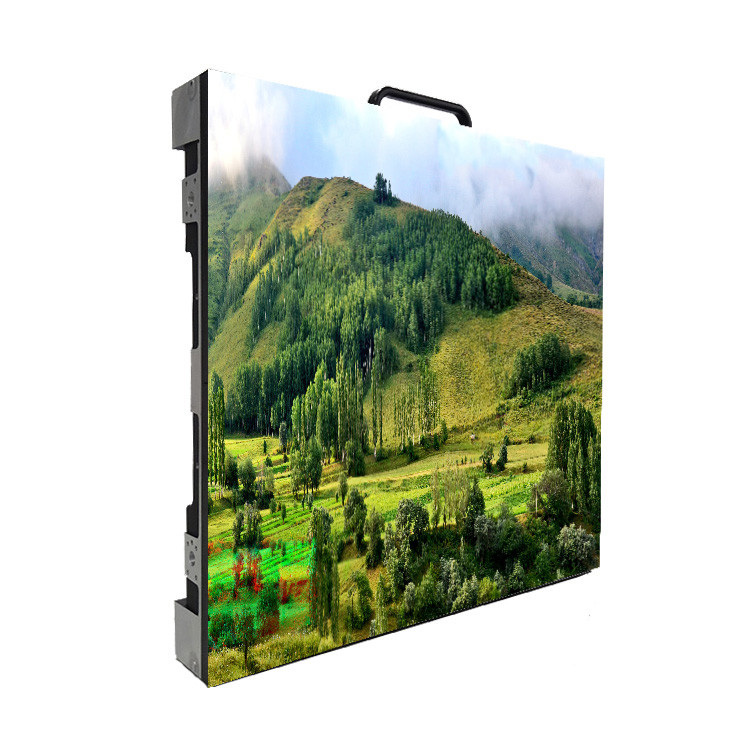

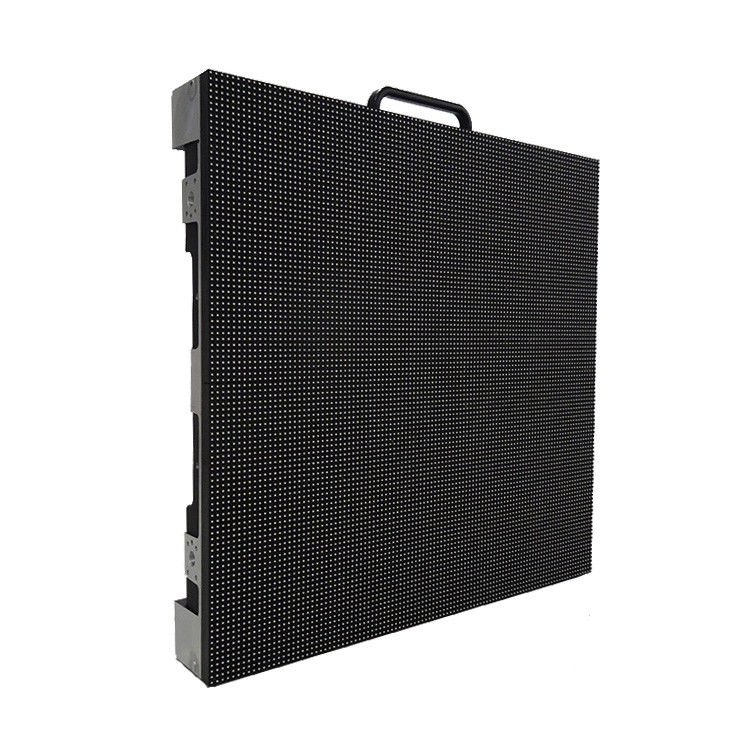

Product Pictures

P2.98 500x500mm Smd Rgb LED Video Wall Display With Die Casting Cabinet 0P2.98 500x500mm Smd Rgb LED Video Wall Display With Die Casting Cabinet 1

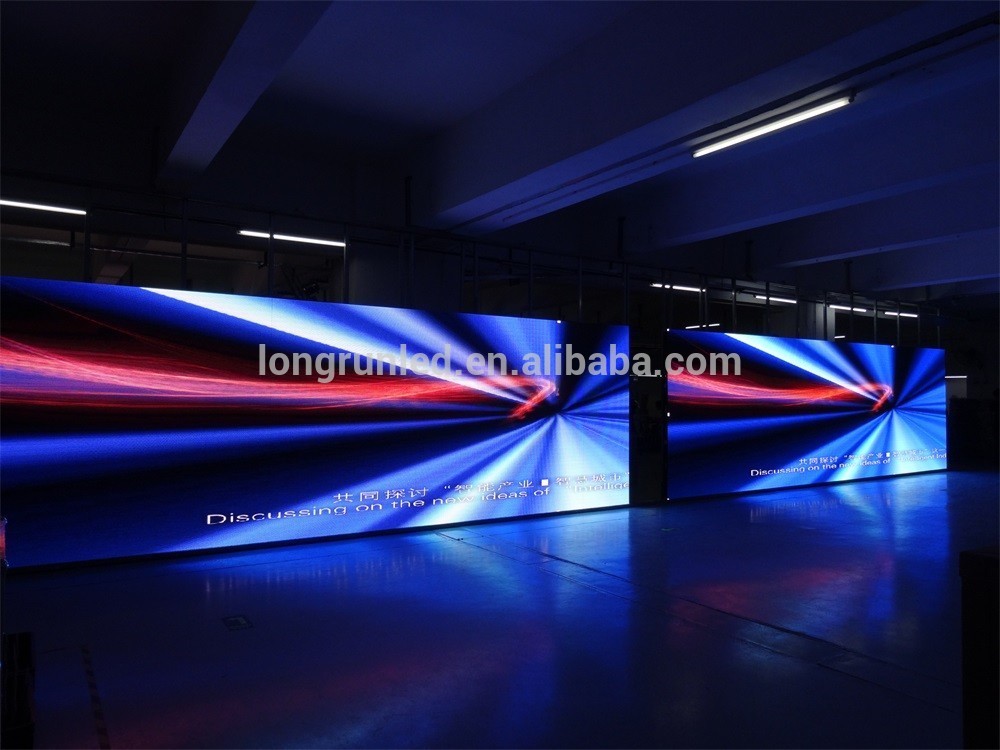

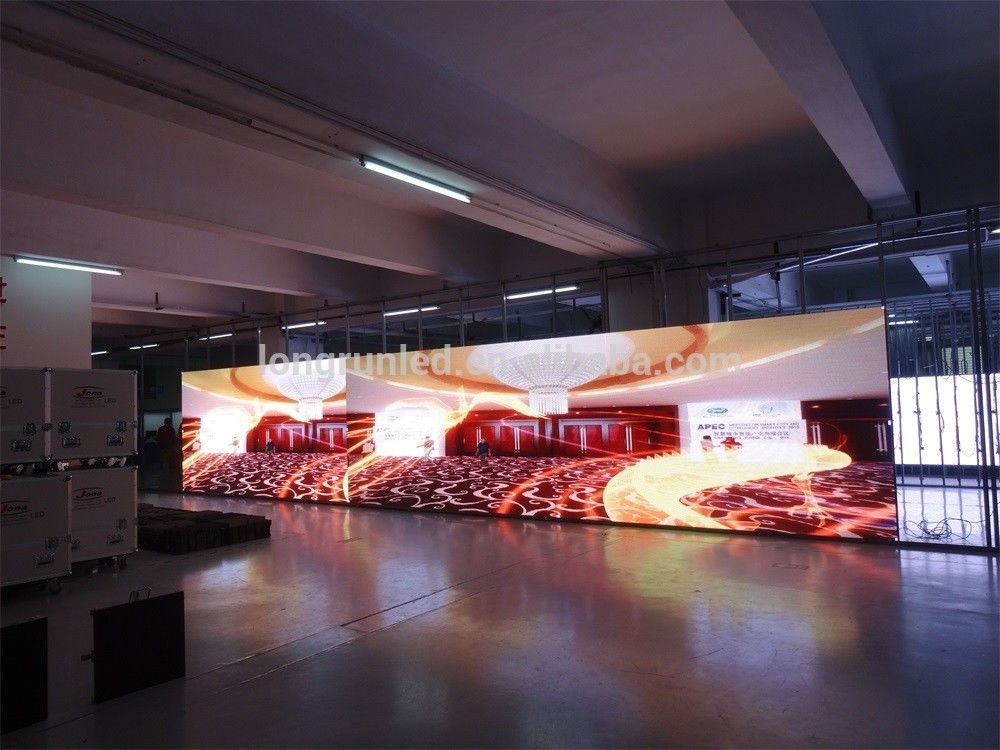

Success Case



P2.98 500x500mm Smd Rgb LED Video Wall Display With Die Casting Cabinet 2

P2.98 500x500mm Smd Rgb LED Video Wall Display With Die Casting Cabinet 3P2.98 500x500mm Smd Rgb LED Video Wall Display With Die Casting Cabinet 4

Company Information



P2.98 500x500mm Smd Rgb LED Video Wall Display With Die Casting Cabinet 5



P2.98 500x500mm Smd Rgb LED Video Wall Display With Die Casting Cabinet 6



P2.98 500x500mm Smd Rgb LED Video Wall Display With Die Casting Cabinet 7
